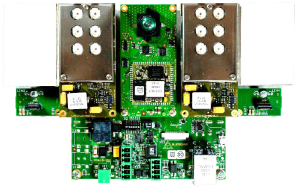

MTK ETH Evaluation KIT for TIM-UP-19k-S3-ETH
Product description
The MTK ETH Evaluation KIT TIM-19k-S3-ETH is intended as development KIT for evaluating the 3D ToF technology and the TIM-19k-S3-ETH module. The KIT supports the TIM-UP-19k-S3-ETH ToF module. Please refer to the support documentation for the module for additional information.
Manuals
Hardware User Manual for the base-board
Hardware User Manual for the TIM module
Software User Manual for the TIM module
Bluetechnix 'Time of Flight' API
The MTK USB Evaluation KIT TIM-19k-S3-Spartan6 is supported by our ToF API.
Software
For firmware updates please refer to the support documentation for the module.
Interfacing and Demo Applications
There are some demo and interfacing applications available on the customer software support package downloadable from the software download.
- BLT-ToF-Suite
- A powerful tool where all registers can be read and written and which shows the amplitude and distance image. It can also be used as a getting started tool to get familiar with the MTK USB Evaluation KIT TIM-19k-S3-Spartan6. The BLT-ToF-Suite is included in the software support package available at the download section.
Download
For additional software downloads, please refer to the software download.
If you encounter any problems feel free to contact us at support@bluetechnix.com
